Critical and largest risks stem from the heart of most plants are the steam generation processes and efficiency of steam lines and their ability to “breath” effectively and efficiently.
Customer support during and after commissioning is of critical importance, and maximum uptime as close as possible to 98% with the lowest energy cost.
As such, we offer a comprehensive scope for site and/or works requirements:
- This service is offered worldwide, we consult and/or visit sites to sort out and investigate any operational issues, heater maintenance requirements and energy consumption and/or energy conversion requirement etc.
- .
Optimisation of existing infrastructure is increasingly popular and providing upgrade solutions to the circuit and/or boilers – for reduction of operational costs and incorporation of updated technologies to enhance control and data availability.
Our focus areas are:
- Fuel supply
- Engineering and Design
- Equipment supply
- Maintenance and support of combustion systems
- Operation and Maintenance of pipelines and Pressure Reduction Stations (PRS)
- Efficiency optimization
- Training
- Heater system pipework and installation services, heater servicing, boiler inspection and heater commissioning also offered as required.
Thermal oil heating systems
- On site Process evaluation in conjunction with OEM
- System design based on equipment requirements using BEP
- Engineering for oil heating applications up to 350ºC
Energy Source (all compliance done according to SANS 329 & 347):
-
- Light oil/ paraffin/ kerosene
- Diesel
- LPG
- Piped Natural gas/CNG
- LNG
- Electrical thermal oil heater systems
- Modular platform/skid assemblies – ready to run
Flash steam boilers
- Process evaluation
- System design
- Engineering for steam systems and pipelines from 10 Bar to 65 Bar
- Autonomous operation or standard operator driven
Energy Source (all compliance done according to SANS 329 & 347):
-
- Light oil/paraffin
- Diesel
- LPG
- Piped natural gas/CNG
- LNG and on-site equipment
- Modular platform/skid assemblies – ready to run
- Boiler rentals – plug and play
Gold processing/elution heating systems
- Specialising in custom design and manufacture of modular heating platform skids, for use specifically for CIL/CIP systems for the gold desorption process [ZADRA or AARL process systems]
- The strip solution heaters are widely used all over the world and have proven themselves rugged and reliable, with over 80 such systems made
- The company has its strongest client base within the gold industry.
- Eluant heating is achieved using thermal oil or water as heat medium.
- Capacity allows for the construction of the complete system prior to the elution column
- Energy sources such as electricity, diesel or gas can be offered
Hot air space heaters
- Process evaluation
- System design
- Engineering for large capacity centralized/modular systems
Energy Source (all compliance done according to SANS 329 & 347): Light Oil/ Paraffin / Kerosene
-
- Diesel
- Paraffin
- LPG
- Piped Natural Gas/CNG
- LNG
- Portable or higher output fixed installations
- Electric air heaters fixed or portable
- Heater maintenance and service
Process heat exchangers
- Process evaluation
- System design
- Engineering
- Steam or hot oil exchangers in purpose-built shell & tube type, plate type, finned tube formats
- Heat exchanger control and reticulation circuits on heating medium side
Direct vegetable/edible oil heater systems
- Process evaluation
- System design
- Engineering
- Applications for direct oil heating up to 190ºC for snack industry – fryers or similar
Energy Source (all compliance done according to SANS 329 & 347):Light oil/ Paraffin/ Kerosene
-
- Diesel
- LPG
- Piped natural gas/ CNG
- LNG
High temperature valves, tanks & ancillaries
- Range of specialist control/isolation/safety valves/filters/check valves
- Expansion and deaeration vessels/pump stations/skid assemblies
- Applications for steam or thermal fluid heating mediums
Heating system process evaluation, sizing and design
- Process evaluations and site consults
- System design and engineering for heater circuit reticulation and sizings
- 3D modelling/modular systems
- Energy audits/fuel assessments
Used/refurbished equipment – sales and rental
- Stock of second hand refurbished steam generators and thermal oil heaters for sale or rental – subject to stock
Heater and boiler/plant spares
- Full range of spares and upgrades for systems dating back to 1969
- Please email us for further information
Heater and boiler servicing, commissioning and repairs
- Workshop repair and refurbishment capability, system upgrades and improvements
- Coil replacements – all systems from 1969
- Site servicing and repairs
- Plant commissioning – local and worldwide
- Plant maintenance and shutdowns
Flash steam boilers consist of a standard range based on steam output, ranging from 100 kg/h up to 2,500 kg/h per unit. (should be 200-7500 kg/h per unit
These can be supplied at standard steam operating pressure limits of 1000 kPa (10 Bar) or up to 4000 kPa (40 bar) on request.
The flash-type steam boiler is mainly suited to small and medium steam user application or applications, where considerable energy and operating cost savings are easily realised by using the boiler only when steam is needed. The operating principle of a flash steam boiler results in a more economic operating cost – now more prevalent and important than ever. If directly compared to a traditional shell type boiler with the same steam output and pressure can be up to 15% more economic to run – purely on its operating principle and design.
The operator simply starts the unit a few minutes prior to needing the steam, and the FULL STEAM OUTPUT and TEMPERATURE/PRESSURE is produced within 3 minutes from a COLD START. This is the major advantage of the system over traditional steam boilers. Steam is not made, as in a domestic hot water kettle, where a volume of water is brought to boil as such, but is GENERATED, as needed, by feeding it into the tubular heat exchanger, indirectly heated by the combustion gas from the burner.
The flash-type steam boiler is considerably more cost-effective to operate, due mainly to the fuel-saving in operating it only when needed, i.e. the extremely rapid steam production rate avoids the fuel wastage in getting up to temperature on a traditional boiler. Costs are also saved on water treatment as these systems seldom require active chemical water treatment, as there is NO WATER LEVEL inside the unit at any one time. The units simply require softened water – usually achievable using a simple ion-exchange water softener. The flash-type steam boiler also has a high thermal efficiency (85% +) due to its interior 4 air pass gas circuit – further reducing the operating costs.
Due to the lack of water volume inside the unit during operation, the flash-type steam boiler is considerably safer to operate too when compared to traditional type boilers.
The system makes use of an air-cooled outer plenum – allowing for further heat recovery and operating efficiency. The unit is also far simpler to repair as the tubes are put together in the form of a twin coil assembly: easily removed and replaced if needed, as against having to re-tube a traditional boiler in-situ with difficult access and RT/AIA costs. The complete coil can be replaced via the top lid with minimal downtime.
The flash-boiler is offered complete with its combustion and control/safety equipment. The systems can also be provided with ancillary equipment and accessories, where needed. These are, for example, the feed water tank or hotwell, the water softening units, blow down tank, steam seperator etc.

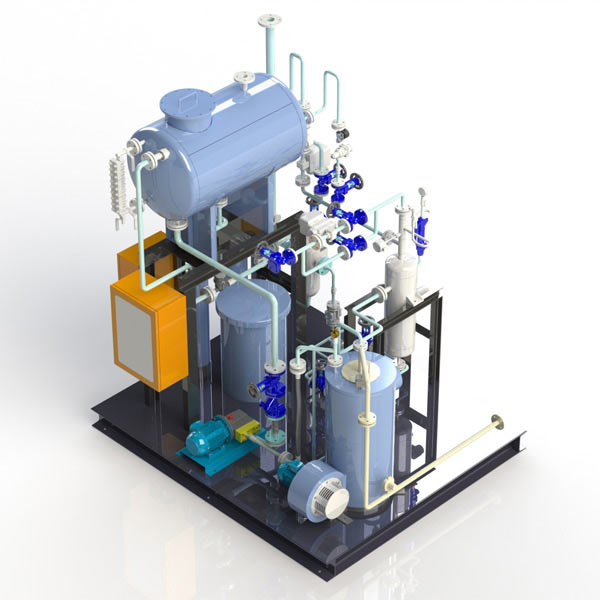

The system is often supplied as a complete steam raising skid where all the necessary items are mounted on a small chassis, and fully interconnected. The customer need then only supply hard water, fuel, and power to the skid, and pipe out the steam and drain, and vent nozzles as required.
These systems can burn most normal fuels, such as diesel, paraffin, natural or LPG gas, and also heavy furnace oils on some sizes.
Uses for steam heating are currently most prevalent in the following industries :
- Food industry – cooking pots
- Steam autoclaves
- Animal feed industry – pelletisers
- Essential oil extraction
- Reactor heating via steam jackets or coils
- Direct steam heating application
- Curing – concrete/ceramics/tiles
- Pharmaceutical industry
- Tanker manufacture industry
- Fuel processing and re-manufacturing industry
Service / Maintenance / Fabrication of various thermal processing equipment in the following fields:
• Pressure vessel & Boiler testing
• Steam Boiler Rentals
• Thermal Oil Boiler Rentals
• After Hours Call Out Service
• Boiler Installations
• Steam & Thermal Oil Piping installations
• Natural & LP Gas Installations
• Shop Fabrication
• Stacks for Boiler Fabrication
• Thermal Insulation
• Tanks & Tank Stands
